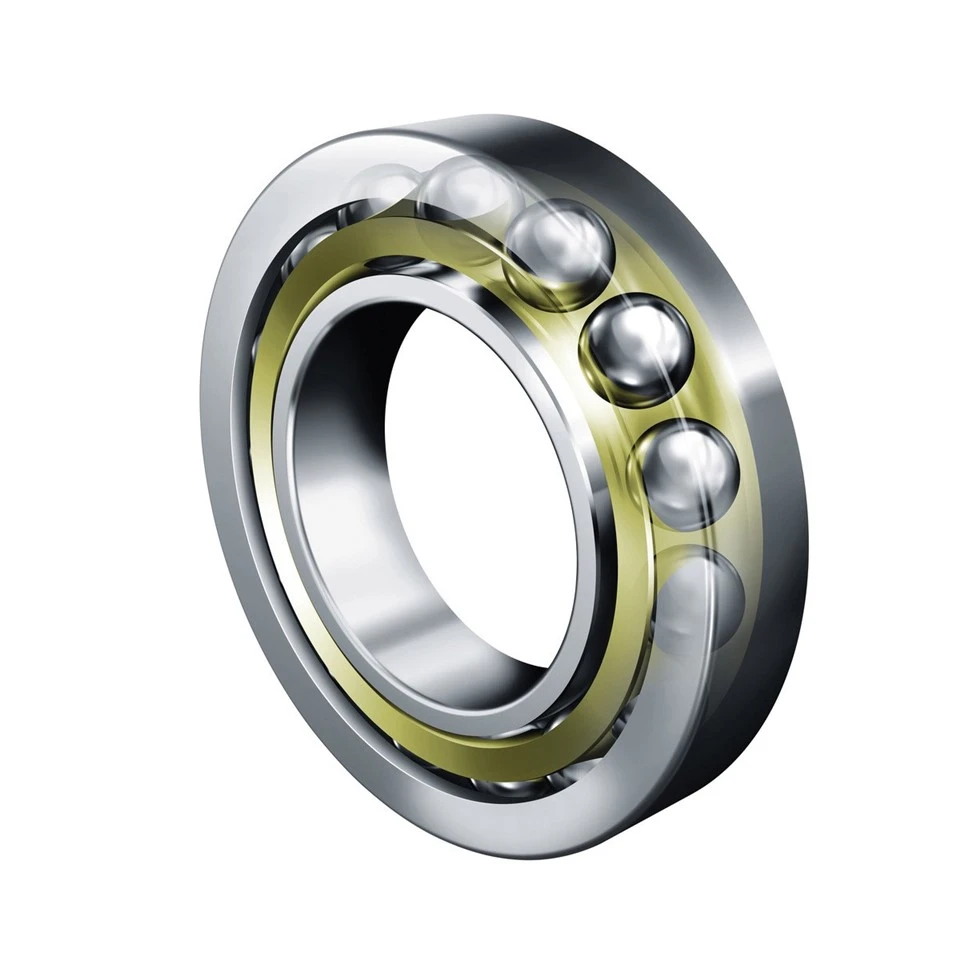

709/500-MP With Size 500x670x54 mm Single Row Angular Contact Ball Bearing
Angular contact ball bearings with standardized main dimensions correspond to DIN 628-1.
The dimensional and geometrical tolerances of the standardized bearings correspond to tolerance class PN to DIN 620-2.
Single row 709..-MP series with MP suffix-solid brass cage, ball guided; This brass cage has good strength and heat resistance that can keep the bearing structure stable at high speed and adapt to the heat generated by the bearing at high speed.Contact angle 30 degree ; No seal; This bearing could be used at operating temperatures from –30 degree to +200 degree (Its ring's dimensional stabilized up to 200 degree ). Normal (PN) tolerance class; Could withstand radial and unidirectional axial loads, Bearing not greased.
Bore diameter{{0}} mm; Outside diameter-670 mm;Width-54 mm; Mass-56.1 kg;Cr=440 kN;C0r=900 kN;Limiting speed=1400 1/min.
| 709/500-MP-Single Row Angular Contact Ball Bearing | |
| 500x670x54mm | |
| d | 500 mm |
| D | 670 mm |
| B | 54 mm |
| 4 mm | |
| D1 | 602 mm |
| 30 degree | |
| 514.6 mm | |
| 655.4 mm | |
| 3 mm | |
| 440 kN | |
| C0r | 900 kN |
| M | 56.1 kg |
